Precision Junction Box & Busbar Welding Solutions
Automated High-Reliability Electrical Interconnection
Our junction box and busbar welding machines provide the critical final electrical link between the solar cell matrix and the external power circuit. Utilizing advanced induction or laser welding technologies, these machines ensure a low-resistance, high-strength bond between the module’s internal busbars and the junction box terminals. This precise interconnection is vital for minimizing electrical losses and preventing localized overheating (hot spots) during the module's 25-year operational lifespan.
Precision Positioning & Non-Contact Welding

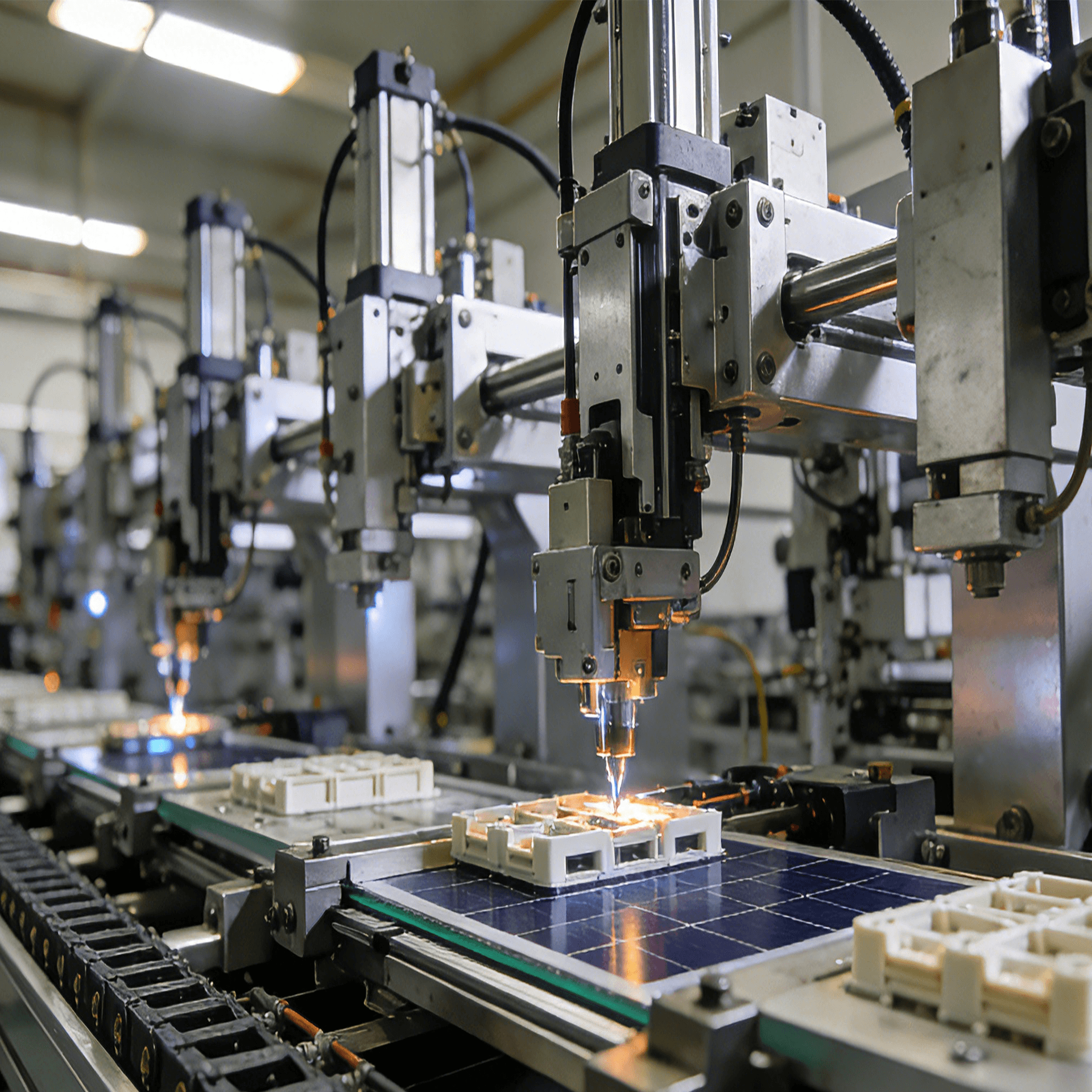

The primary function of our automated welding system is to perform consistent, high-speed bonding without physical stress on the laminated glass. Equipped with high-resolution CCD vision systems, the machine automatically identifies the busbar positions and aligns the junction box with sub-millimeter accuracy. The non-contact induction heating process ensures that heat is concentrated only on the solder joint, protecting the surrounding encapsulant and backsheet from thermal degradation.
Versatile Compatibility & Flux Management
Designed for the modern solar factory, our welding machines support a wide range of junction box designs, including split-type and integrated versions for bifacial and monofacial modules. The system features integrated flux dispensing and solder wire feeding mechanisms that are precisely calibrated to prevent excess residue. This clean-room compatible process ensures that every weld meets international IEC standards for pull-strength and electrical conductivity.
Integrated Quality Control & Traceability
Built for high-throughput Tier-1 production lines, these machines feature real-time monitoring of welding temperature and joint integrity. Every weld cycle is recorded by the intelligent PLC control system, providing full data traceability for quality assurance. With rapid changeover capabilities and robust mechanical frames, our welding solutions offer maximum uptime and the lowest cost-of-ownership for high-volume PV module manufacturers.
