Automated Module Stringing & Lay-up Solutions
High-Precision Multi-Busbar (MBB) Stringing
Our automated stringing solutions are engineered for high-speed interconnection of solar cells using advanced MBB and SMBB technologies. Utilizing ultra-fine soldering ribbons and infrared or induction heating modules, these systems ensure uniform thermal distribution and minimal mechanical stress, resulting in superior electrical conductivity and significantly reduced micro-crack risks.
Intelligent Robotic Lay-up & Positioning

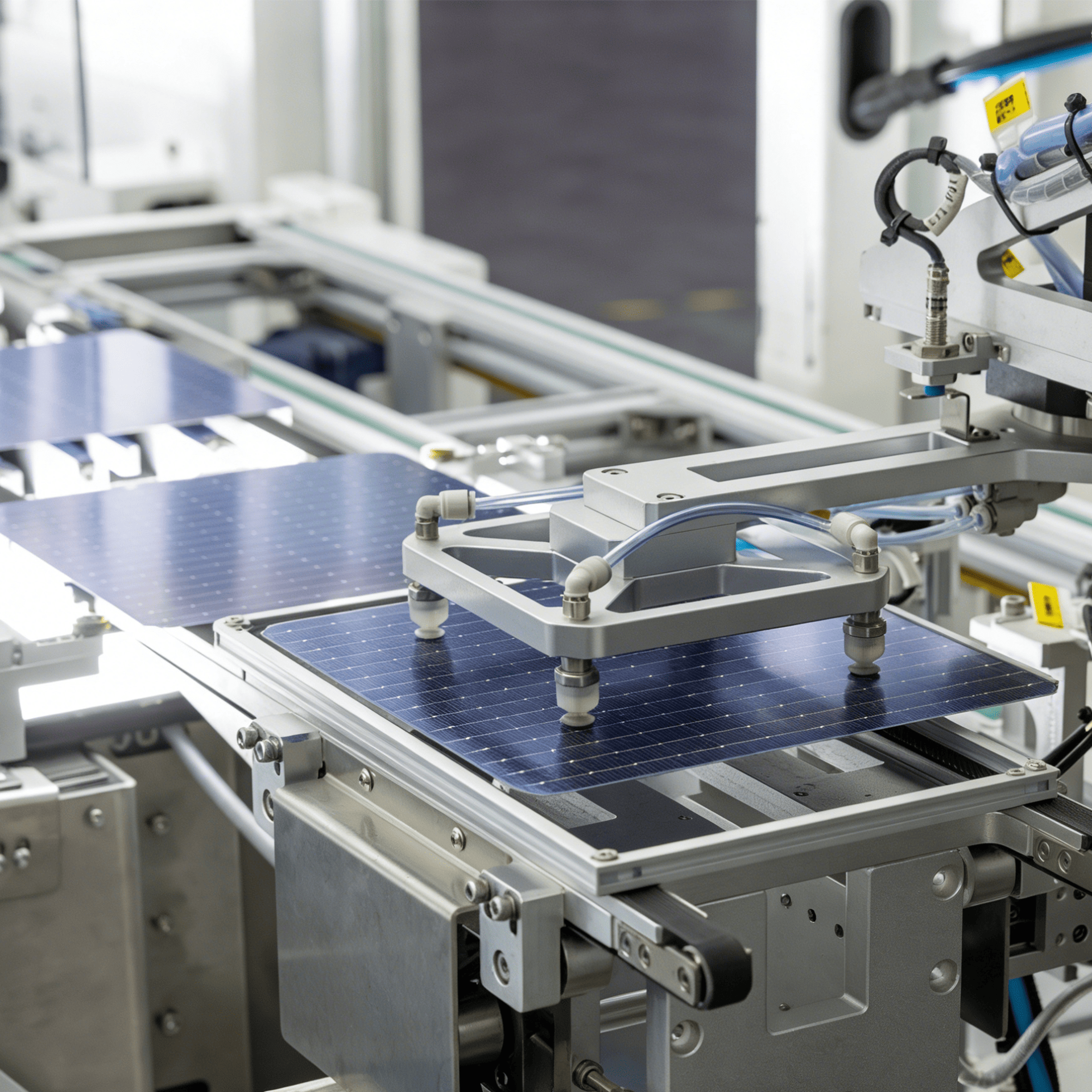

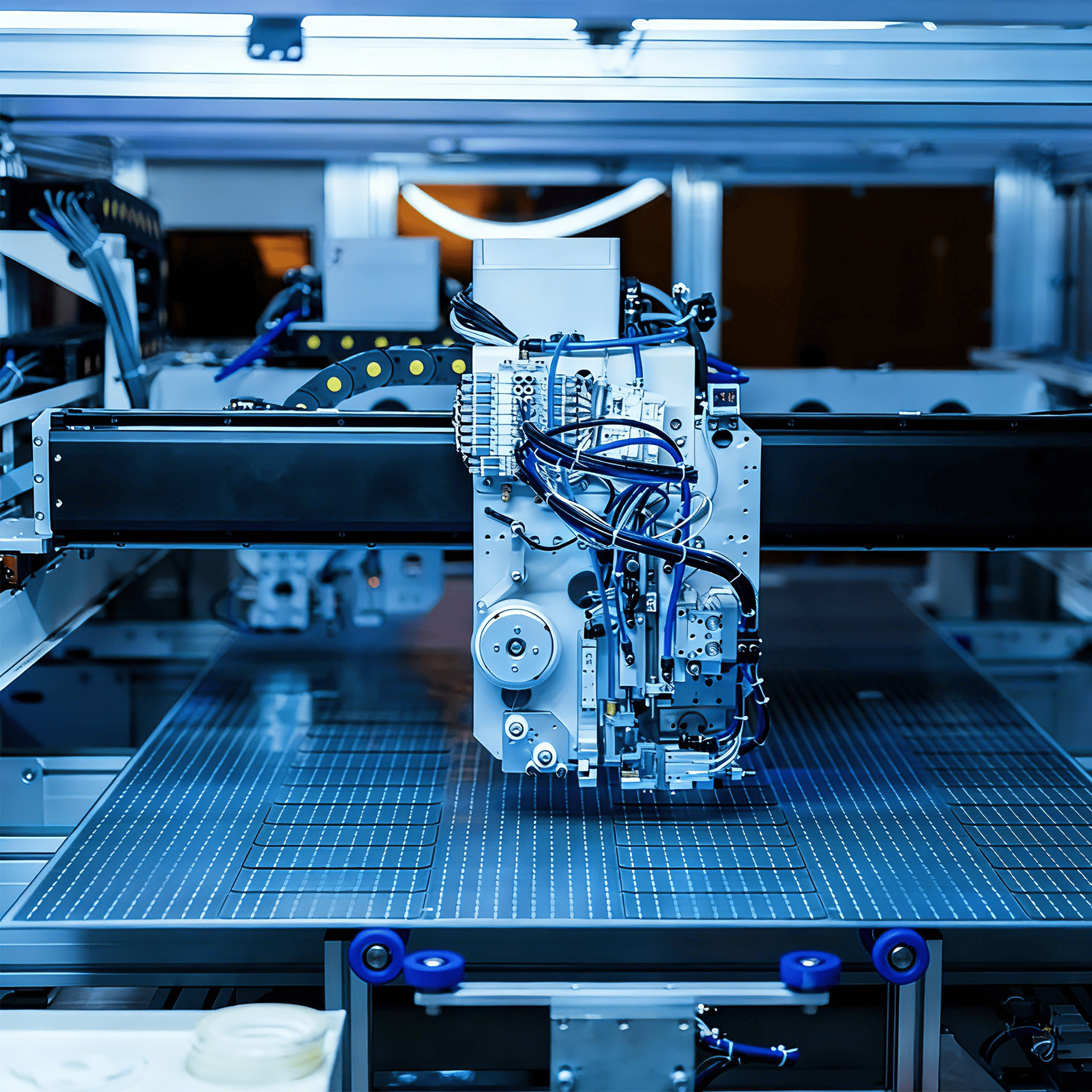

The integrated lay-up system employs high-speed robotic arms equipped with specialized vacuum suction arrays to precisely position cell strings onto the glass/encapsulant stack. This ensures sub-millimeter accuracy in string alignment and spacing, which is critical for maximizing the active area of the PV module and ensuring aesthetic uniformity in high-wattage panel production.
Dynamic Process Control & AOI Integration
To guarantee zero-defect manufacturing, our stringing and lay-up units feature integrated Automated Optical Inspection (AOI). Every solder joint and string alignment is monitored in real-time, allowing for immediate rejection or correction of anomalies. This closed-loop quality control minimizes material waste and ensures every module meets Tier-1 reliability standards.
Universal Compatibility & Scalability
Designed for the future of PV manufacturing, our equipment offers seamless compatibility with M10 and G12 wafer formats, as well as bifacial and glass-glass module designs. The modular architecture allows for rapid adjustments between different cell counts and string configurations, providing the flexibility needed to scale production while maintaining maximum uptime and throughput.
